Beck Compact Modules (BCM)
Open Frame Displays and Accessories
Beck Compact Modules are TFT Displays ready for Connection.
Drive peripherals such as interface cards, LED converters, OSD boards and others are adapted to the display. They are attached to the display via a special housing which forms a completely integrated unit with the display. Construction, product innovation and production of the Compact Module takes place at the Beck facilities. Typical applications for the Compact Modules are multimedia or industrial applications, such as info-terminals (POI, POS), gaming machines, industrial displays and industrial PCs as well as control units for industrial machines.
| Size (cm) |
Size (inch) |
Touch | Type | Beck Part Number |
Resolution (X*Y) |
Brightness (cd/m²) |
Contrast | Viewing Angle (3 / 6 / 9 / 12 , o'clock) |
Interface | Power Supply | Outline (H*V*D, mm) |
Remark | Image |  |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 30.7 | 12.1 | w/o | SCM12X01-R RGB/DVI/DP | 188-01315 | 1024*768 | 600 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 281.5*205.9*29.6 | wide view (AAS), high brightness | View picture | Download |
| 30.7 | 12.1 | PCAP-Touch | SCMT12X01-R RGB/DVI/DP | 188-01420 | 1024*768 | 540 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 290.5*239.8*37.7 | wide view (AAS), high brightness | View picture | Download |

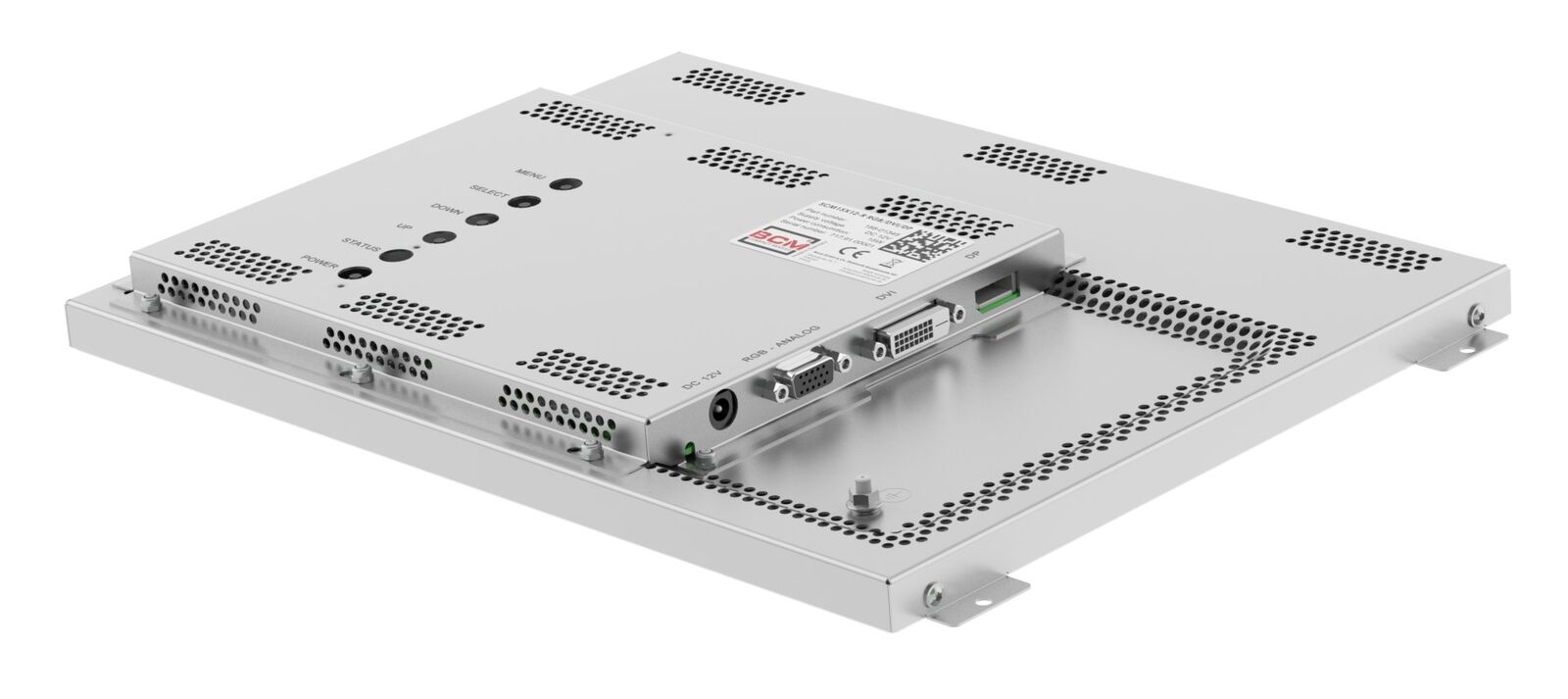

| 38.1 | 15.0 | w/o | SCM15X12-R RGB/DVI/DP | 188-01345 | 1024*768 | 500 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI / DP | 12V DC | 347.0*255.1*28.8 | developing – wide view (VA), high brightness | View picture | Download |

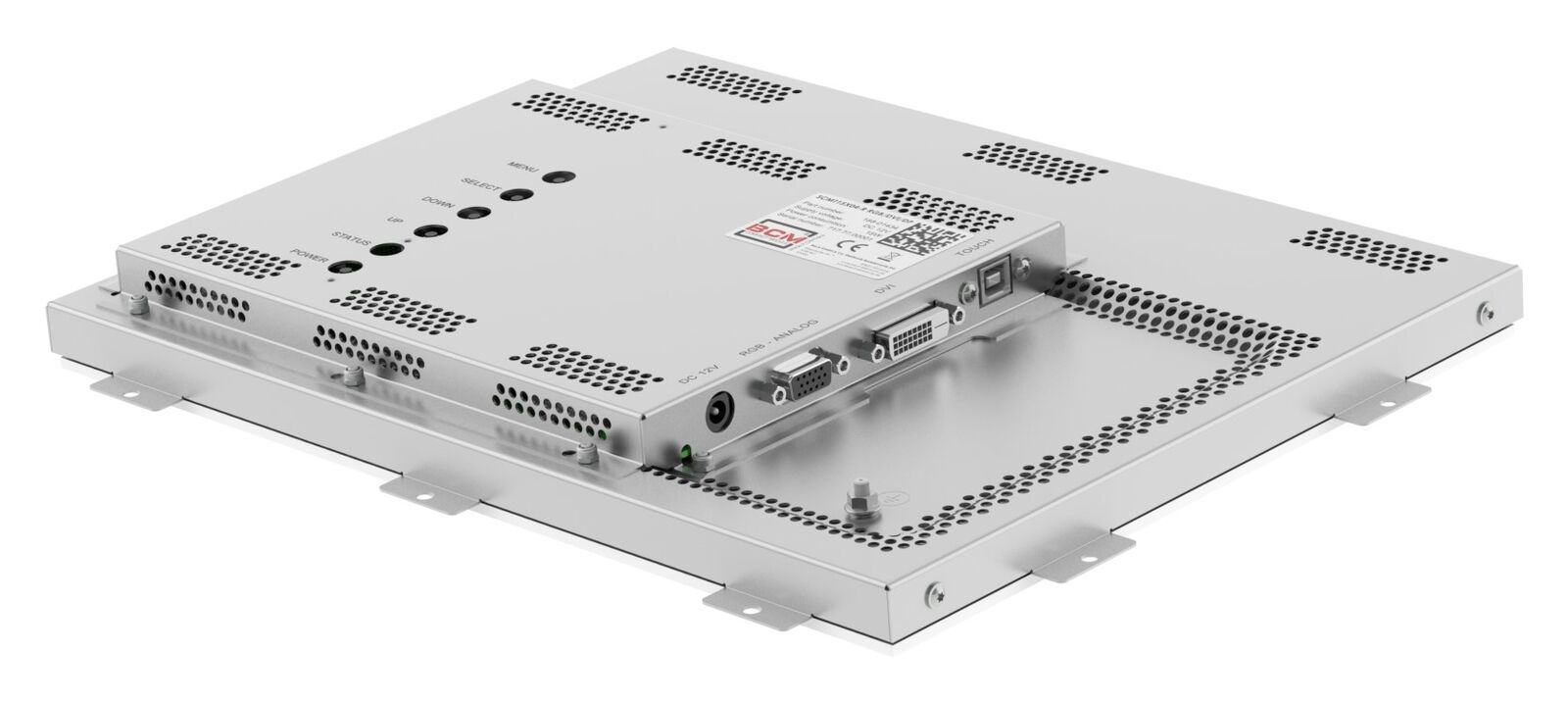

| 38.1 | 15.0 | RES-Touch | SCMT15X04-R RGB/DVI | 188-01434 | 1024*768 | 410 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI / USB | 12V DC | 350.0*277.0*36.0 | wide view (VA), high brightness | View picture | Download |
| 38.1 | 15.0 | PCAP-Touch | SCMT15X05-R RGB/DVI | 188-01435 | 1024*768 | 450 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI / USB | 12V DC | 349.2*283.4*40.0 | wide view (VA), high brightness | View picture | Download |

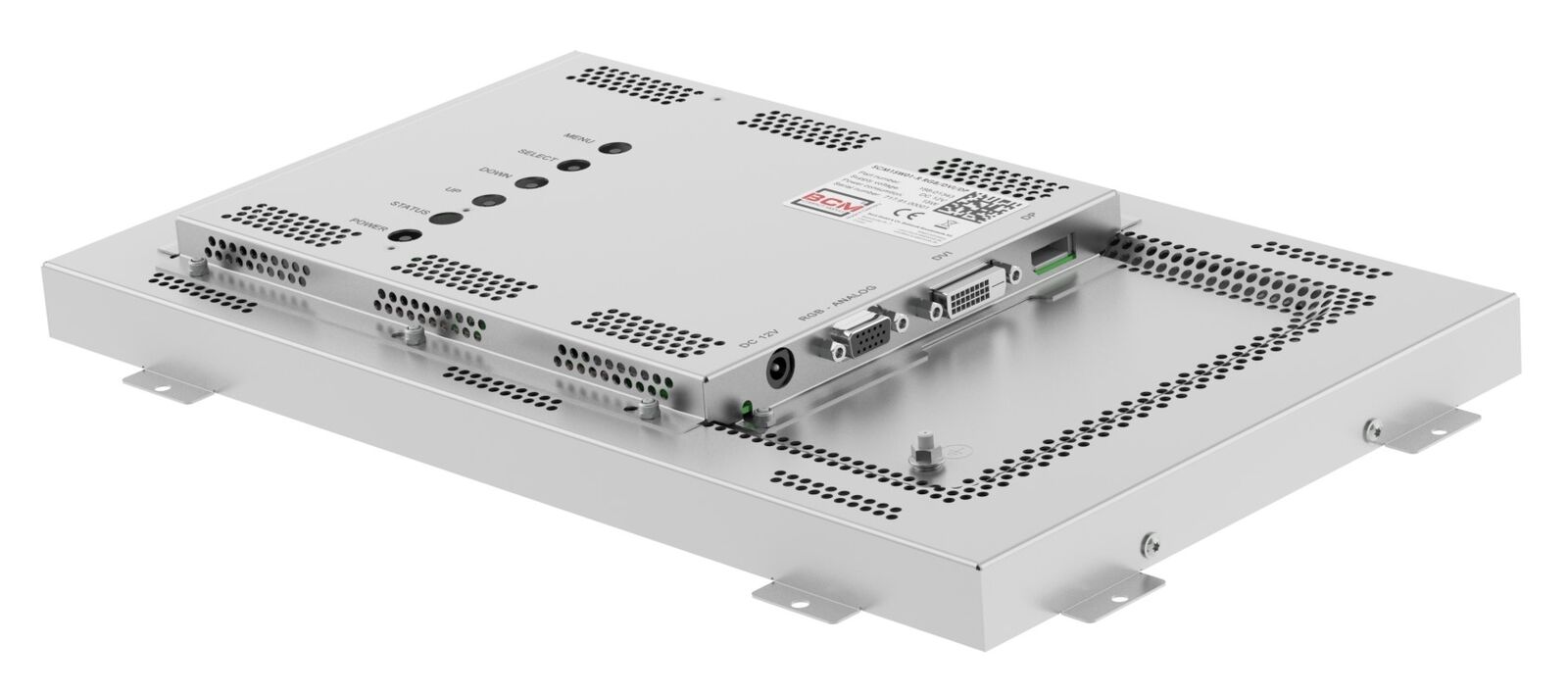

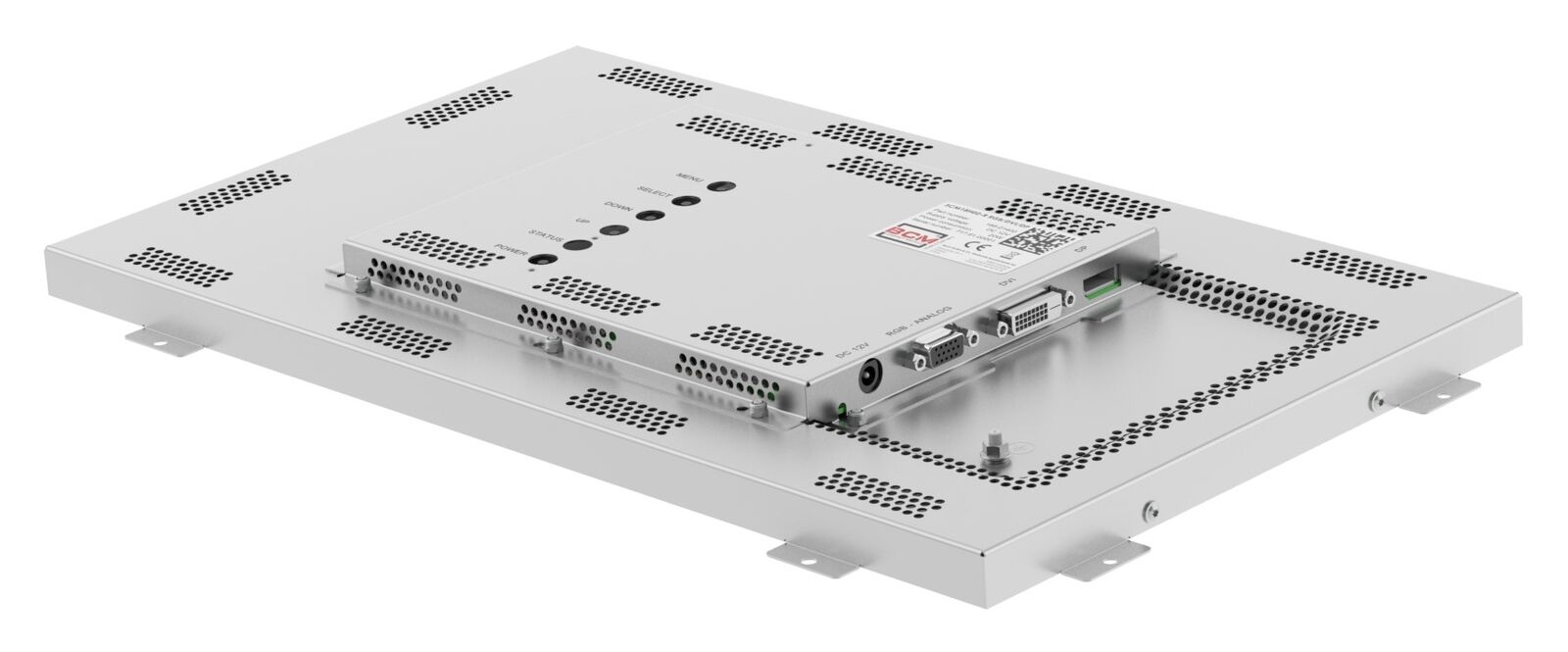

| 39.6 | 15.6 | w/o | SCM15W01-R RGB/DVI/DP | 188-01343 | 1366*768 | 300 | 500:1 | 80 / 80 / 80 / 80 | Analog-RGB / DVI / DP | 12V DC | 384.8*236.9*37.6 | fast response time | View picture | Download |
| 39.6 | 15.6 | PCAP-Touch | SCMT15W01-R RGB/DVI | 188-01433 | 1366*768 | 270 | 500:1 | 80 / 80 / 80 / 80 | Analog-RGB / DVI / USB | 12V DC | 388.8*247.5*45.0 | fast response time | View picture | Download |
| 39.6 | 15.6 | w/o | SCM15H01-R RGB/DVI/DP | 188-01344 | 1920*1080 | 450 | 800:1 | 85 / 85 / 85 / 85 | Analog-RGB / DVI / DP | 12V DC | 384.8*236.9*32.1 | high brightness | View picture | Download |

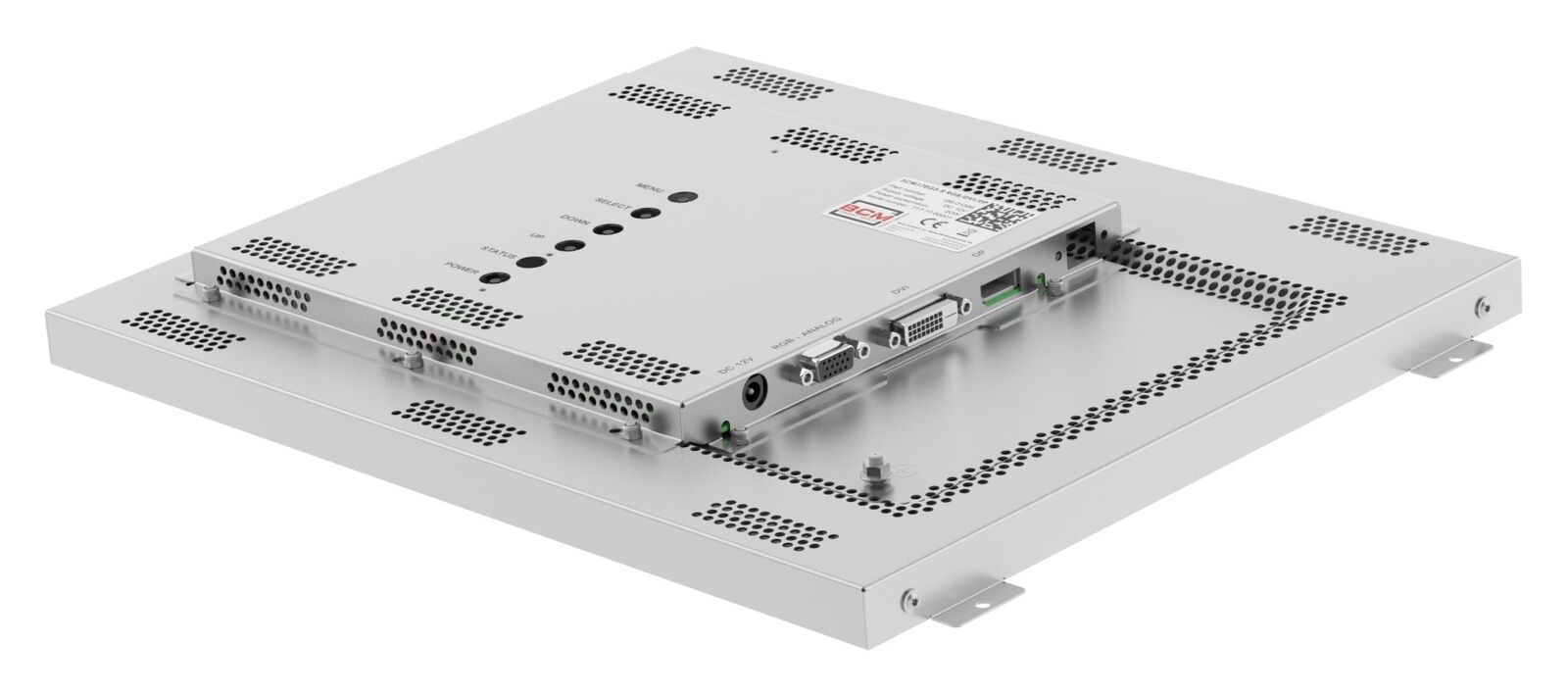

| 43.2 | 17.0 | w/o | SCM17EG3-R RGB/DVI/DP | 188-01366 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP | 12V DC | 379.5*298.4*32.8 | high brightness, fast response time | View picture | Download |
| 43.2 | 17.0 | RES-Touch | SCMT17EG3-R RGB/DVI/DP | 188-01442 | 1280*1024 | 287 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP / USB | 12V DC | 381.4*320.0*38.5 | fast response time | No picture yet | Download |
| 43.2 | 17.0 | PCAP-Touch | SCMT17EG2-R RGB/DVI | 188-01441 | 1280*1024 | 315 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 385.6*328.6*39.4 | fast response time | View picture | Download |
| 47.0 | 18.5 | w/o | SCM18W02-R RGB/DVI/DP | 188-01401 | 1366*768 | 300 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP | 12V DC | 452.2*276.4*32.1 | fast response time | View picture | Download |
| 47.0 | 18.5 | w/o | SCM18H02-R RGB/DVI/DP | 188-01400 | 1920*1080 | 350 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 452.2*276.4*32.1 | wide view (AHVA), high brightness | View picture | Download |
| 47.0 | 18.5 | PCAP-Touch | SCMT18H01-R RGB/DVI | 188-01463 | 1920*1080 | 315 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / USB | 12V DC | 457.6*285.3*40.0 | wide view (AHVA) | View picture | Download |
| 48.3 | 19.0 | w/o | SCM19EG4-R RGB/DVI | 188-01396 | 1280*1024 | 300 | 2000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 416.9*325.6*32.8 | wide view (MVA) | View picture | Download |
| 48.3 | 19.0 | w/o | SCM19EG6-R RGB/DVI/DP | 188-01402 | 1280*1024 | 350 | 2000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 417.0*325.9*32.8 | developing – wide view (MVA), high brightness | View picture | Download |

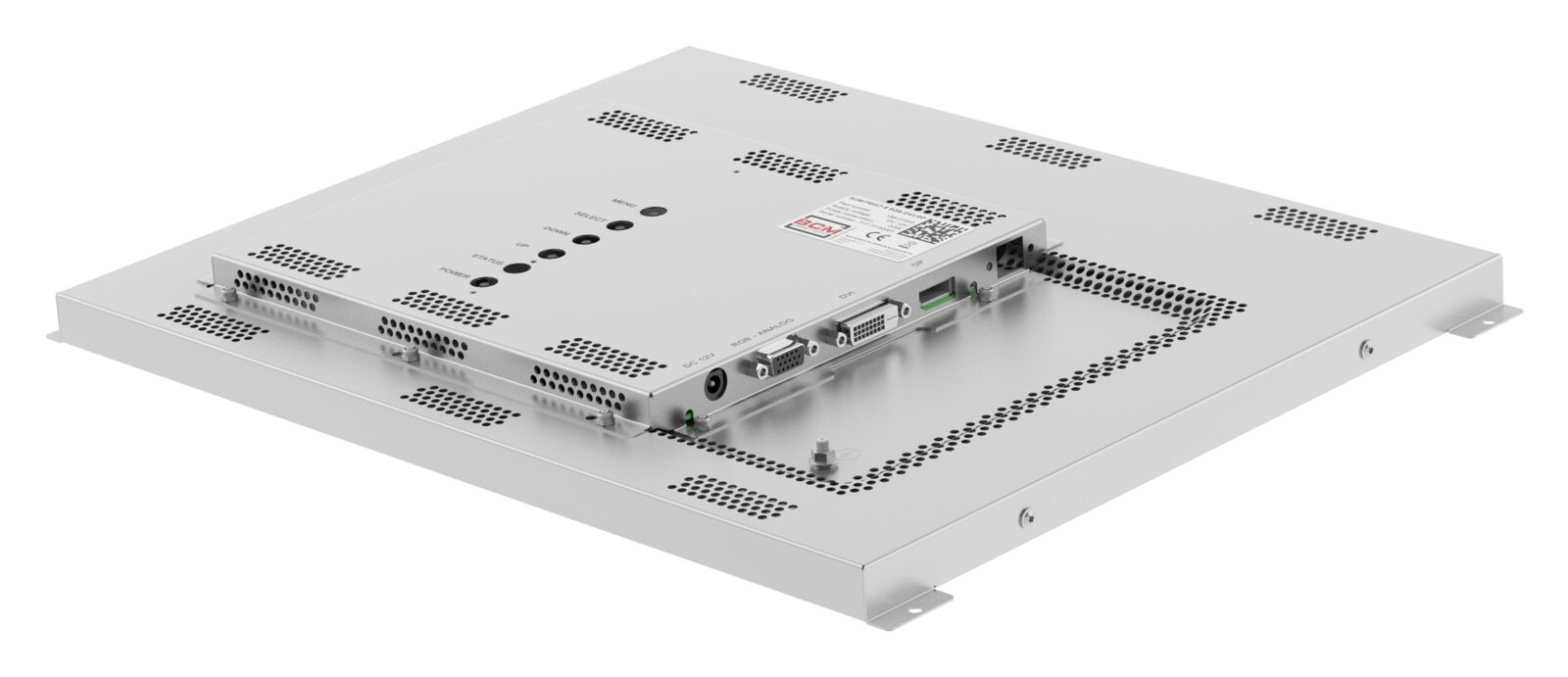

| 48.3 | 19.0 | w/o | SCM19EG7-R RGB/DVI/DP | 188-01403 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP | 12V DC | 417.0*325.9*32.8 | high brightness, fast response time | View picture | Download |
| 48.3 | 19.0 | RES-Touch | SCMT19EG2-R RGB/DVI | 188-01450 | 1280*1024 | 287 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 418.4*346.4*38.2 | fast response time | View picture | Download |
| 48.3 | 19.0 | RES-Touch | SCMT19EG3-R RGB/DVI/DP | 188-01453 | 1280*1024 | 287 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / DP / USB | 12V DC | 419.5*347.5*38.2 | developing – fast response time | View picture | Download |
| 48.3 | 19.0 | PCAP-Touch | SCMT19EG1-R RGB/DVI | 188-01452 | 1280*1024 | 315 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI / USB | 12V DC | 423.1*356.0*40.0 | fast response time | View picture | Download |

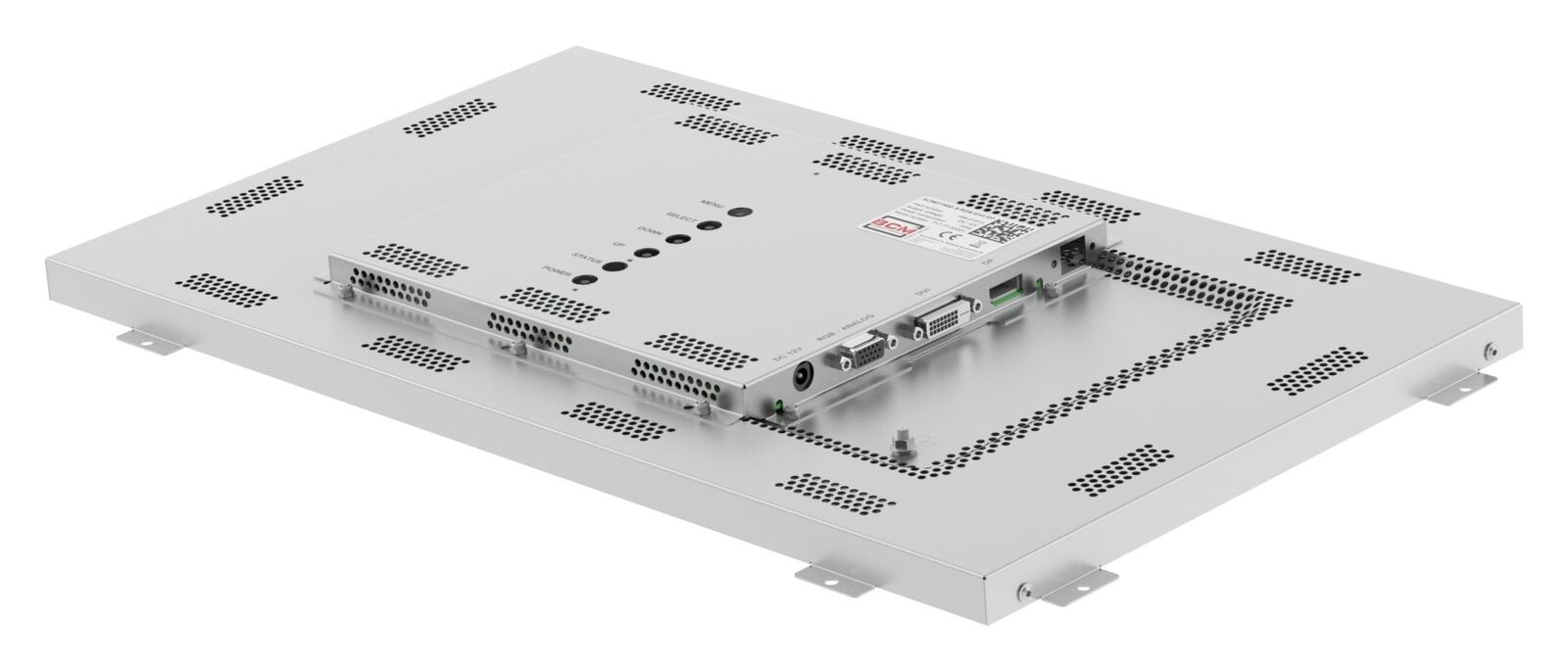

| 54.6 | 21.5 | w/o | SCM21H02-R RGB/DVI/DP | 188-01413 | 1920*1080 | 300 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 517.4*314.0*32.0 | developing – wide view (MVA) | View picture | Download |
| 54.6 | 21.5 | RES-Touch | SCMT21H04-R RGB/DVI/DP | 188-01462 | 1920*1080 | 246 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 518.0*318.5*38.1 | wide view (MVA) | View picture | Download |

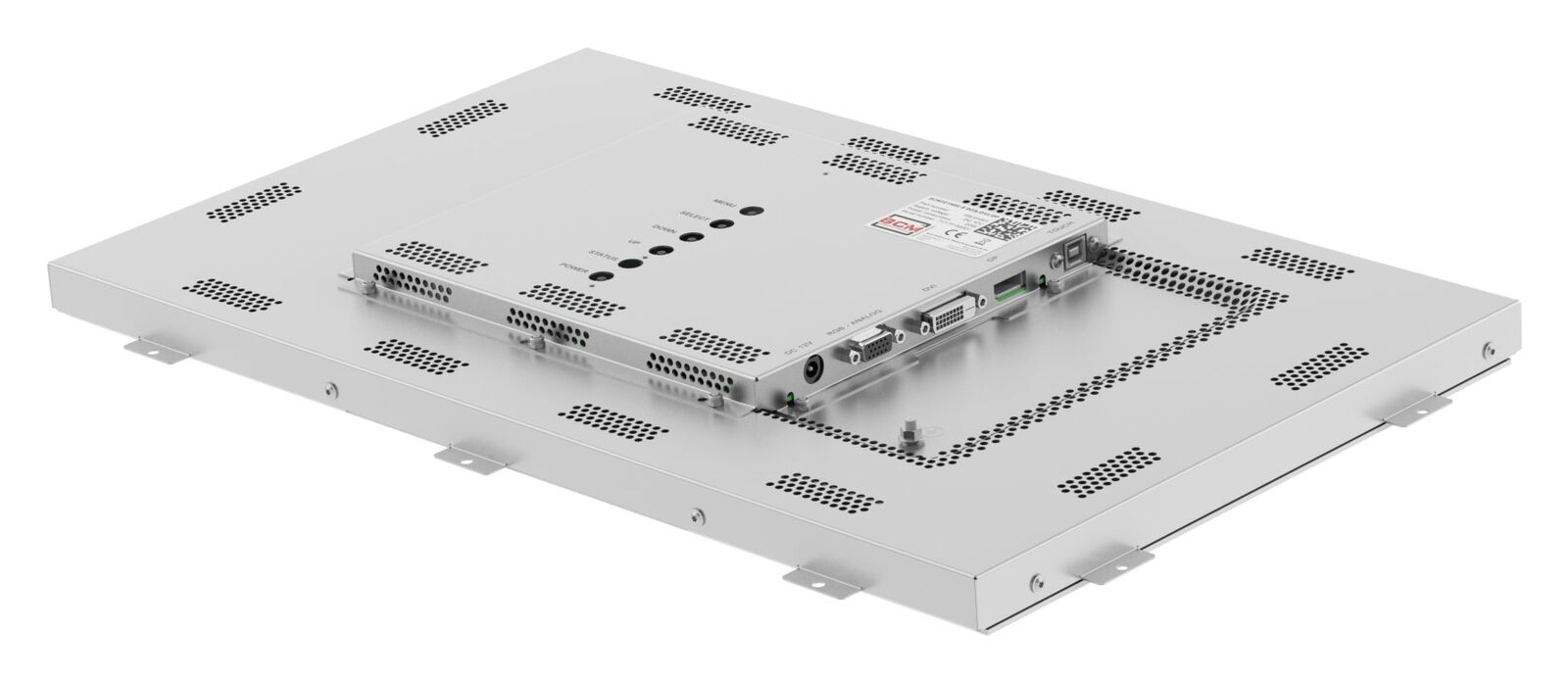

| 54.6 | 21.5 | PCAP-Touch | SCMT21H05-R RGB/DVI/DP | 188-01461 | 1920*1080 | 270 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 525.0*327.0*38.1 | developing – wide view (MVA) | View picture | Download |
| 60.5 | 23.8 | w/o | SCM23H01-R RGB/DVI/DP | 188-01411 | 1920*1080 | 450 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 561.6*338.1*32.6 | wide view (AAS), high brightness | No picture yet | Download |
| 60.5 | 23.8 | w/o | SCM23H02-R RGB/DVI/DP | 188-01410 | 1920*1080 | 450 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 24V DC | 561.6*338.1*32.6 | wide view (AAS), high brightness | No picture yet | Download |

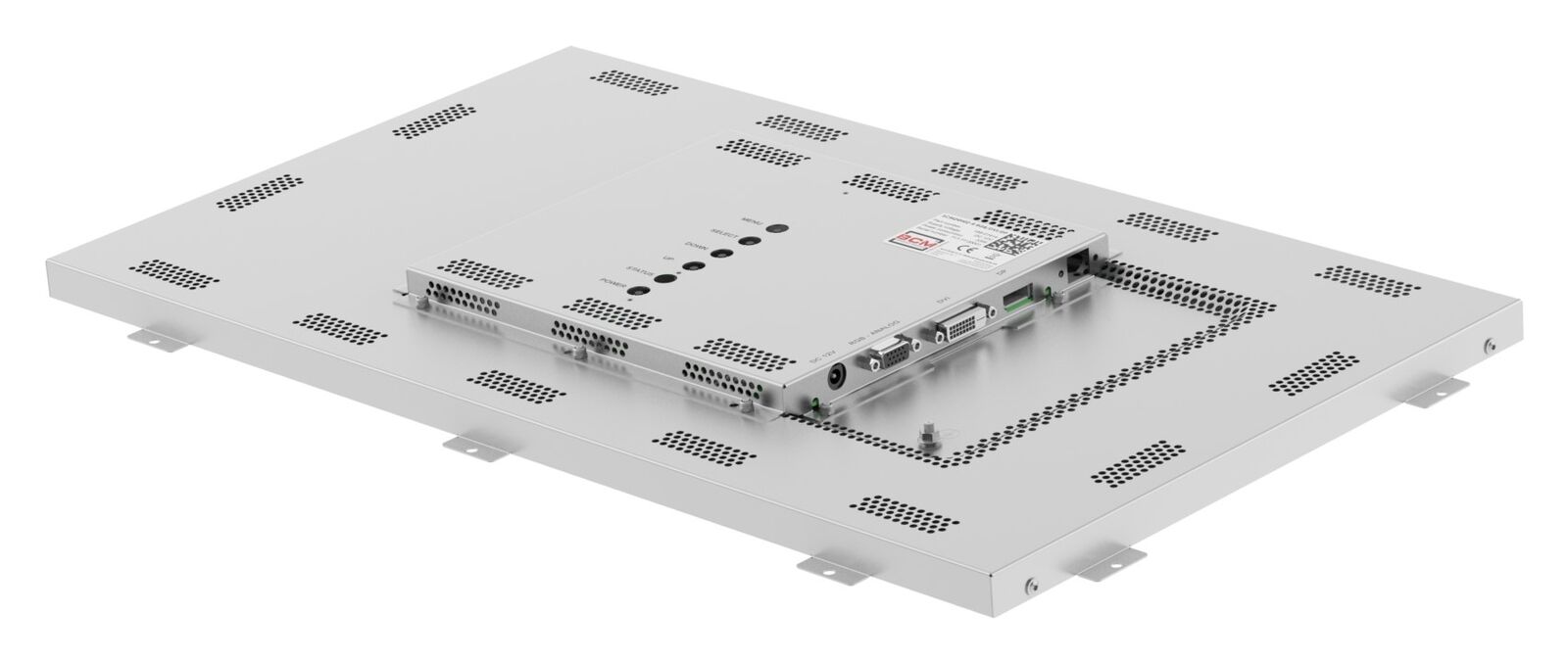

| 61.0 | 24.0 | w/o | SCM24H02-R RGB/DVI/DP | 188-01414 | 1920*1080 | 300 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP | 12V DC | 578.2*345.0*32.1 | developing – wide view (MVA) | View picture | Download |
| 61.0 | 24.0 | RES-Touch | SCMT24H02-R RGB/DVI/DP | 188-01466 | 1920*1080 | 246 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 578.3*345.5*38.4 | wide view (MVA) | View picture | Download |
| 61.0 | 24.0 | PCAP-Touch | SCMT24H03-R RGB/DVI/DP | 188-01464 | 1920*1080 | 270 | 5000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI / DP / USB | 12V DC | 578.6*355.0*38.4 | wide view (MVA) | View picture | Download |
| 68.6 | 27.0 | w/o | SCM27H01-R RGB/DVI | 188-01415 | 1920*1080 | 350 | 3000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 634.7*377.7*29.5 | wide view (MVA), high brightness | View picture | Download |
| Size (cm) |
Size (inch) |
Touch | Type | Beck Part Number |
Resolution (X*Y) |
Brightness (cd/m²) |
Contrast | Viewing Angle (3 / 6 / 9 / 12 , o'clock) |
Interface | Power Supply | Outline (H*V*D, mm) |
Remark | Image | |
| Size (cm) |
Size (inch) |
Touch | Type | Beck Part Number |
Resolution (X*Y) |
Brightness (cd/m²) |
Contrast | Viewing Angle (3 / 6 / 9 / 12 , o'clock) |
Interface | Power Supply | Outline (H*V*D, mm) |
Remark | Image | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

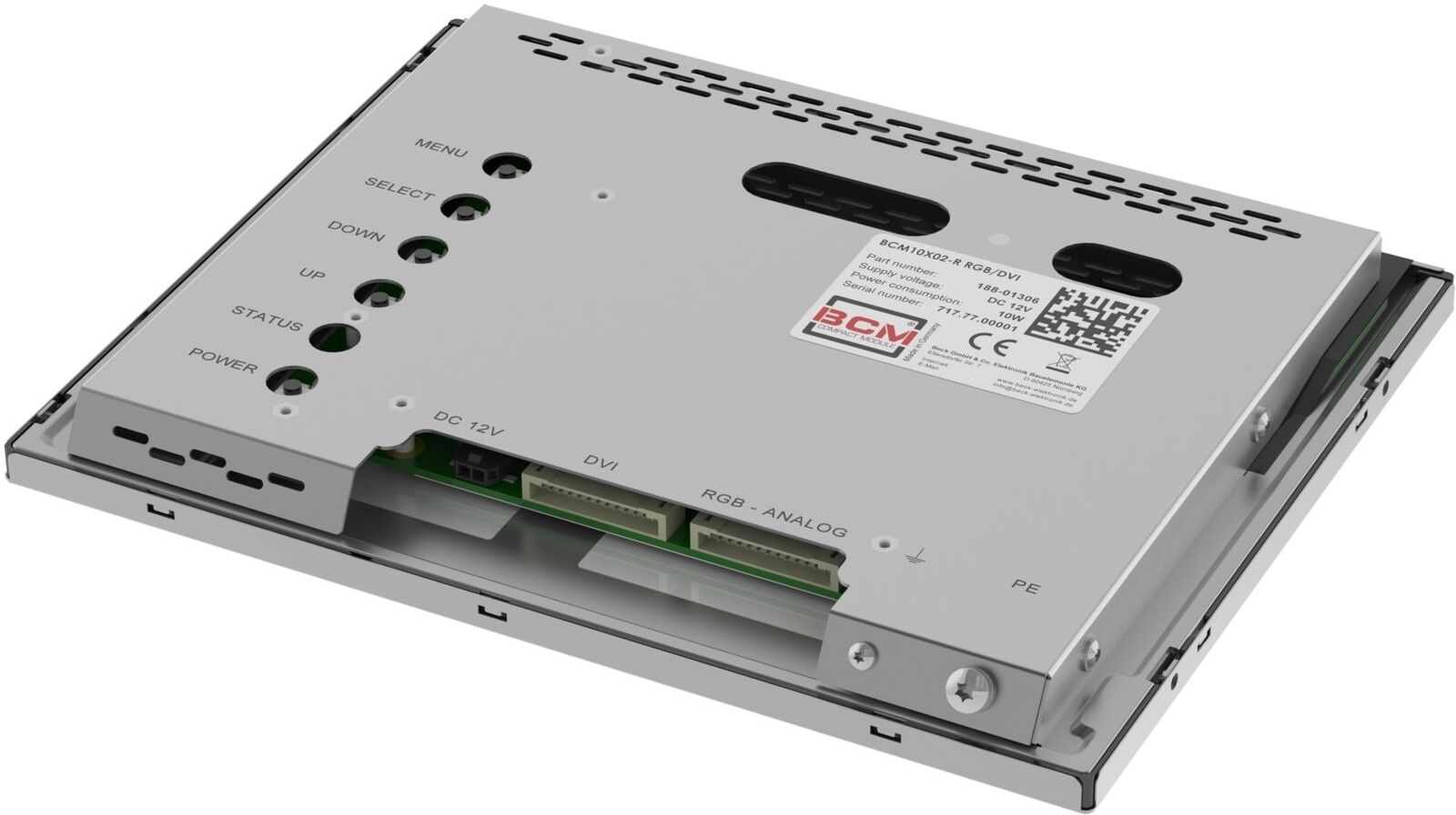

| 26.4 | 10.4 | w/o | BCM10X01-R RGB/DVI | 188-01304 | 1024*768 | 500 | 1000:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI | 12V DC | 225.5*176.3*20.0 | wide view (MVA), high brightness | View picture | Download |
| 26.4 | 10.4 | w/o | BCM10X02-R RGB/DVI | 188-01306 | 1024*768 | 500 | 1000:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI | 12V DC | 225.5*176.3*20.0 | developing – wide view (AAS), high brightness | No picture yet | Download |
| 30.7 | 12.1 | w/o | BCM12X02-R RGB/DVI | 188-01301 | 1024*768 | 500 | 700:1 | 80 / 70 / 80 / 70 | Analog-RGB / DVI | 12V DC | 260.5*204.0*17.6 | high brightness | View picture | Download |
| 30.7 | 12.1 | w/o | BCM12X03-R RGB/DVI | 188-01305 | 1024*768 | 600 | 1000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 260.5*204.0*17.6 | wide view (AAS), high brightness | No picture yet | Download |

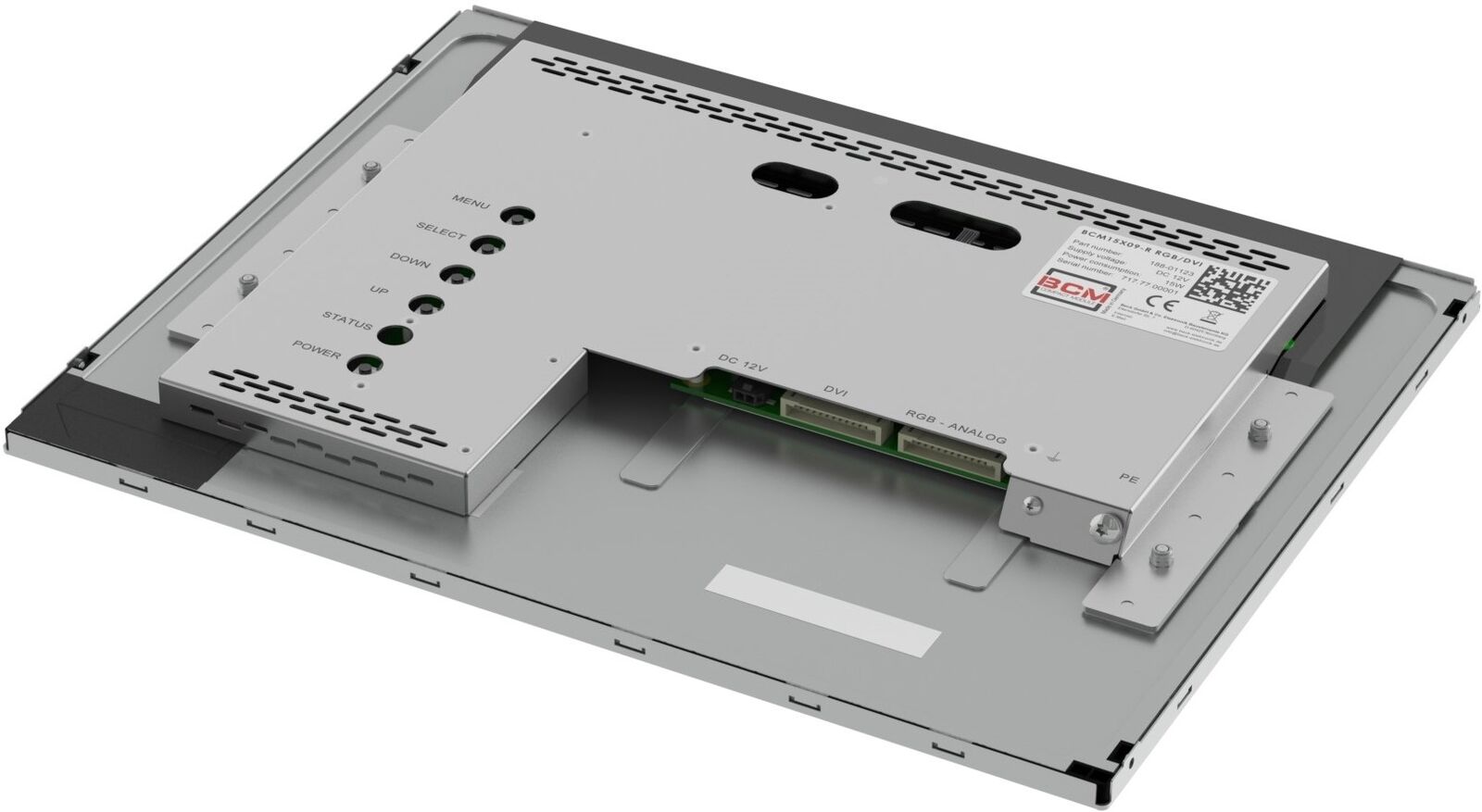

| 38.1 | 15.0 | w/o | BCM15X08-R RGB/DVI | 188-01122 | 1024*768 | 500 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI | 12V DC | 326.5*253.5*22.8 | wide view (VA), high brightness | View picture | Download |
| 38.1 | 15.0 | w/o | BCM15X09-R RGB/DVI | 188-01123 | 1024*768 | 500 | 2500:1 | 88 / 88 / 88 / 88 | Analog-RGB / DVI | 12V DC | 326.5*253.5*21.1 | developing – wide view (VA), high brightness | No picture yet | Download |

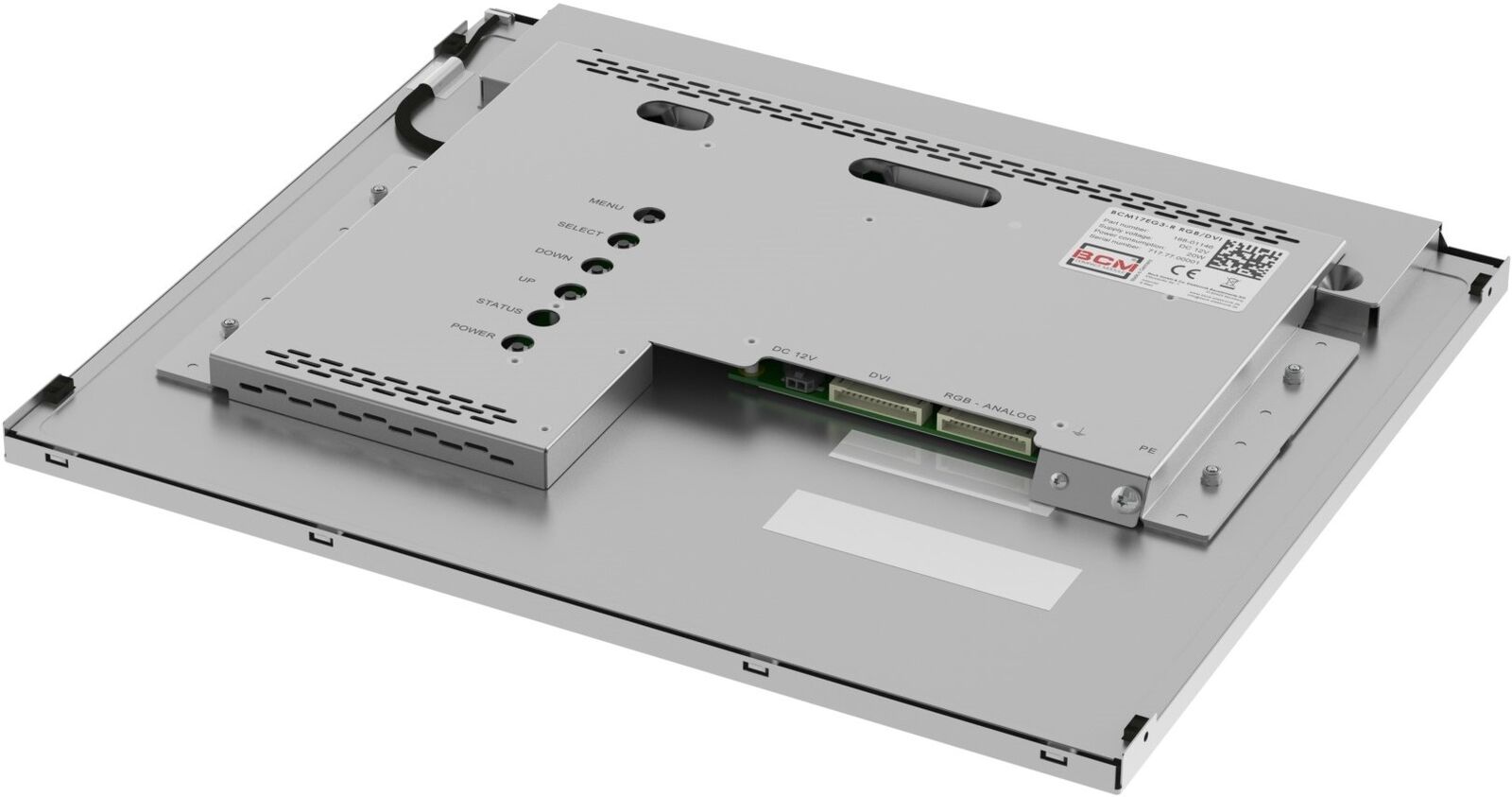

| 43.2 | 17.0 | w/o | BCM17EG2-R RGB/DVI | 188-01145 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI | 12V DC | 358.5*296.5*22.5 | high brightness, fast response time | View picture | Download |
| 43.2 | 17.0 | w/o | BCM17EG3-R RGB/DVI | 188-01146 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI | 12V DC | 358.5*296.5*22.8 | high brightness, fast response time | No picture yet | Download |
| 47.0 | 18.5 | w/o | BCM18W01-R RGB/DVI | 188-01178 | 1366*768 | 300 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI | 12V DC | 430.5*254.8*21.2 | fast response time | View picture | Download |
| 48.3 | 19.0 | w/o | BCM19EG3-R RGB/DVI | 188-01176 | 1280*1024 | 300 | 2000:1 | 89 / 89 / 89 / 89 | Analog-RGB / DVI | 12V DC | 396.0*324.0*21.8 | wide view (MVA) | View picture | Download |
| 48.3 | 19.0 | w/o | BCM19EG4-R RGB/DVI | 188-01177 | 1280*1024 | 350 | 1000:1 | 85 / 80 / 85 / 80 | Analog-RGB / DVI | 12V DC | 396.0*324.0*21.8 | high brightness, fast response time | View picture | Download |
| Size (cm) |
Size (inch) |
Touch | Type | Beck Part Number |
Resolution (X*Y) |
Brightness (cd/m²) |
Contrast | Viewing Angle (3 / 6 / 9 / 12 , o'clock) |
Interface | Power Supply | Outline (H*V*D, mm) |
Remark | Image | |
| Size (cm) | Size (inch) | Type | Beck Article-No. | Anschlusskabel | Netzteile | Sonstiges Zubehör | ||
|---|---|---|---|---|---|---|---|---|

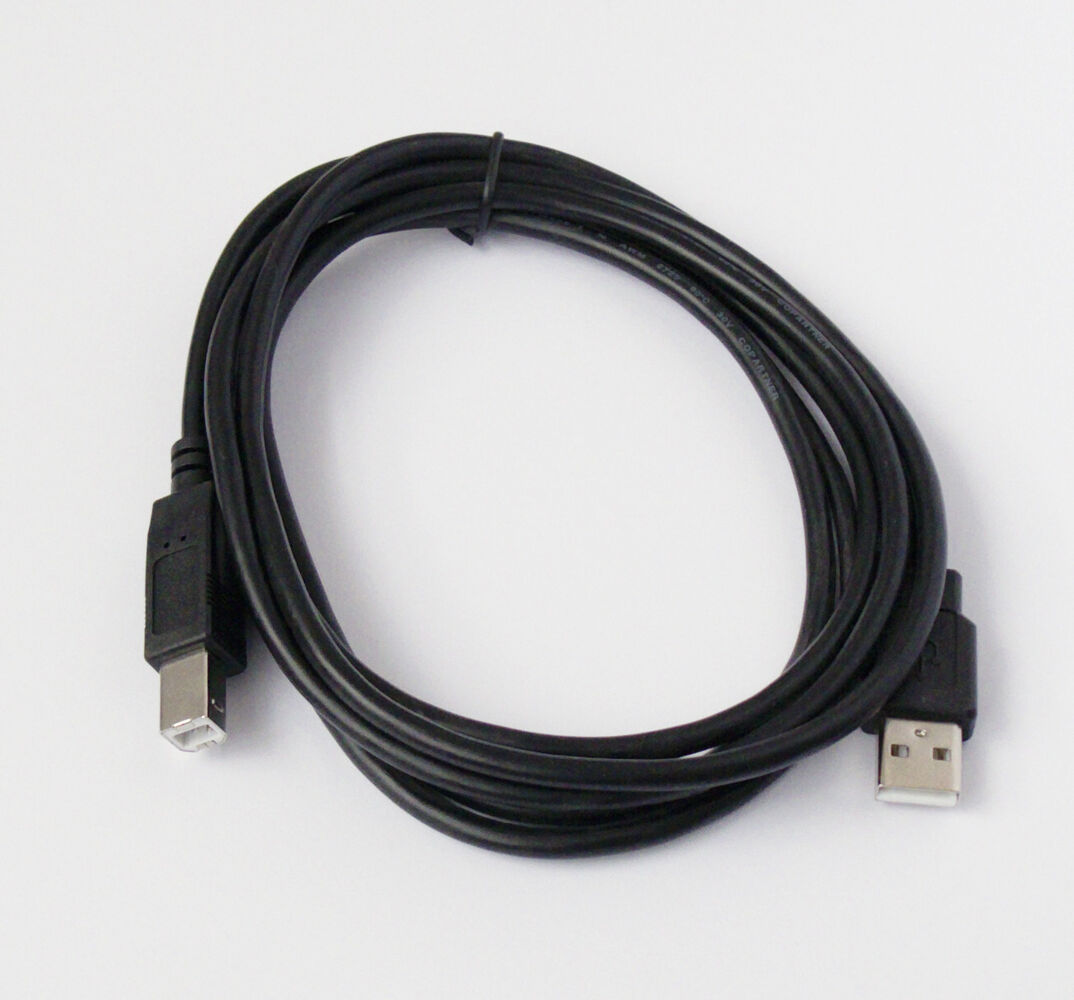

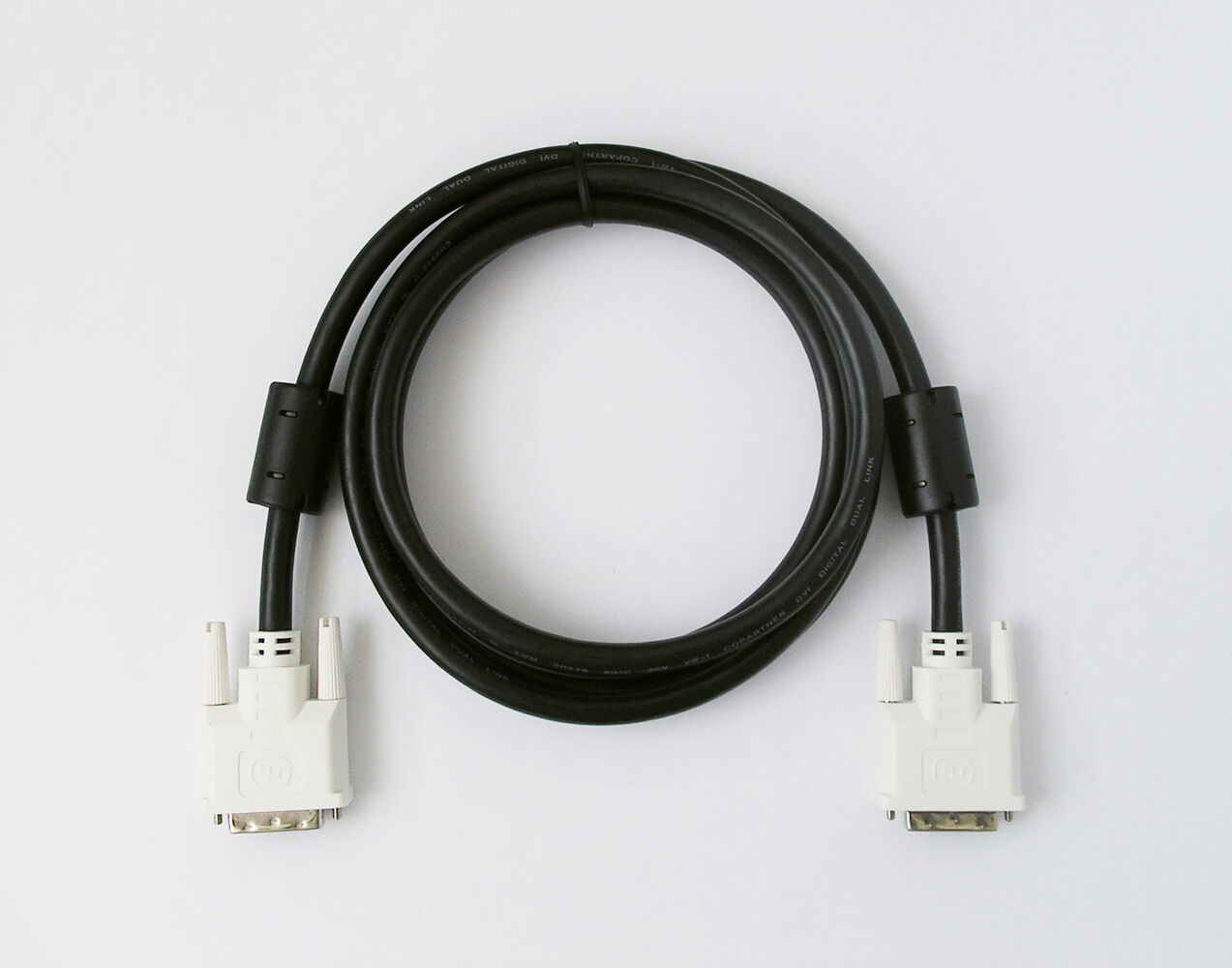

| 188-00232: VGA 2.2m | 188-00231: DVI-D 2.2m | 188-00629: USB Adapter 2.0m | 188-00330: GT-41132-6012-T3 | 188-00218: DC-Ltg. Holst. 1.25m | ||||
| View picture | View picture | View picture | View picture | View picture | ||||
| 30.7 | 12.1 | SCM12X01-R RGB/DVI/DP | 188-01315 | |||||
| 30.7 | 12.1 | SCMT12X01-R RGB/DVI/DP | 188-01420 | |||||
| 38.1 | 15.0 | SCM15X12-R RGB/DVI/DP | 188-01345 | |||||
| 38.1 | 15.0 | SCMT15X04-R RGB/DVI | 188-01434 | |||||
| 38.1 | 15.0 | SCMT15X05-R RGB/DVI | 188-01435 | |||||
| 39.6 | 15.6 | SCM15W01-R RGB/DVI/DP | 188-01343 | |||||
| 39.6 | 15.6 | SCMT15W01-R RGB/DVI | 188-01433 | |||||
| 39.6 | 15.6 | SCM15H01-R RGB/DVI/DP | 188-01344 | |||||
| 43.2 | 17.0 | SCM17EG3-R RGB/DVI/DP | 188-01366 | |||||
| 43.2 | 17.0 | SCMT17EG3-R RGB/DVI/DP | 188-01442 | |||||
| 43.2 | 17.0 | SCMT17EG2-R RGB/DVI | 188-01441 | |||||
| 47.0 | 18.5 | SCM18W02-R RGB/DVI/DP | 188-01401 | |||||
| 47.0 | 18.5 | SCM18H02-R RGB/DVI/DP | 188-01400 | |||||
| 47.0 | 18.5 | SCMT18H01-R RGB/DVI | 188-01463 | |||||
| 48.3 | 19.0 | SCM19EG4-R RGB/DVI | 188-01396 | |||||
| 48.3 | 19.0 | SCM19EG6-R RGB/DVI/DP | 188-01402 | |||||
| 48.3 | 19.0 | SCM19EG7-R RGB/DVI/DP | 188-01403 | |||||
| 48.3 | 19.0 | SCMT19EG2-R RGB/DVI | 188-01450 | |||||
| 48.3 | 19.0 | SCMT19EG3-R RGB/DVI/DP | 188-01453 | |||||
| 48.3 | 19.0 | SCMT19EG1-R RGB/DVI | 188-01452 | |||||
| 54.6 | 21.5 | SCM21H02-R RGB/DVI/DP | 188-01413 | |||||
| 54.6 | 21.5 | SCMT21H04-R RGB/DVI/DP | 188-01462 | |||||
| 54.6 | 21.5 | SCMT21H05-R RGB/DVI/DP | 188-01461 | |||||
| 60.5 | 23.8 | SCM23H01-R RGB/DVI/DP | 188-01411 | |||||
| 60.5 | 23.8 | SCM23H02-R RGB/DVI/DP | 188-01410 | |||||
| 61.0 | 24.0 | SCM24H02-R RGB/DVI/DP | 188-01414 | |||||
| 61.0 | 24.0 | SCMT24H02-R RGB/DVI/DP | 188-01466 | |||||
| 61.0 | 24.0 | SCMT24H03-R RGB/DVI/DP | 188-01464 | |||||
| 68.6 | 27.0 | SCM27H01-R RGB/DVI | 188-01415 | |||||
| Size (cm) |
Size (inch) |
Type | Beck Article-No. |
Anschlussadapter | Anschlusskabel Kits | Netzteile | Touch Lösungen |
Befestigungssätze | Sonstiges Zubehör | Einzelteile der Anschlussadapter | |||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 188- 00499: RGB only |
188- 00512: DVI only |
188- 00515: RGB/DVI |
188- 00608: RGB only |
188- 00609: DVI only |
188- 00547: RGB/DVI |

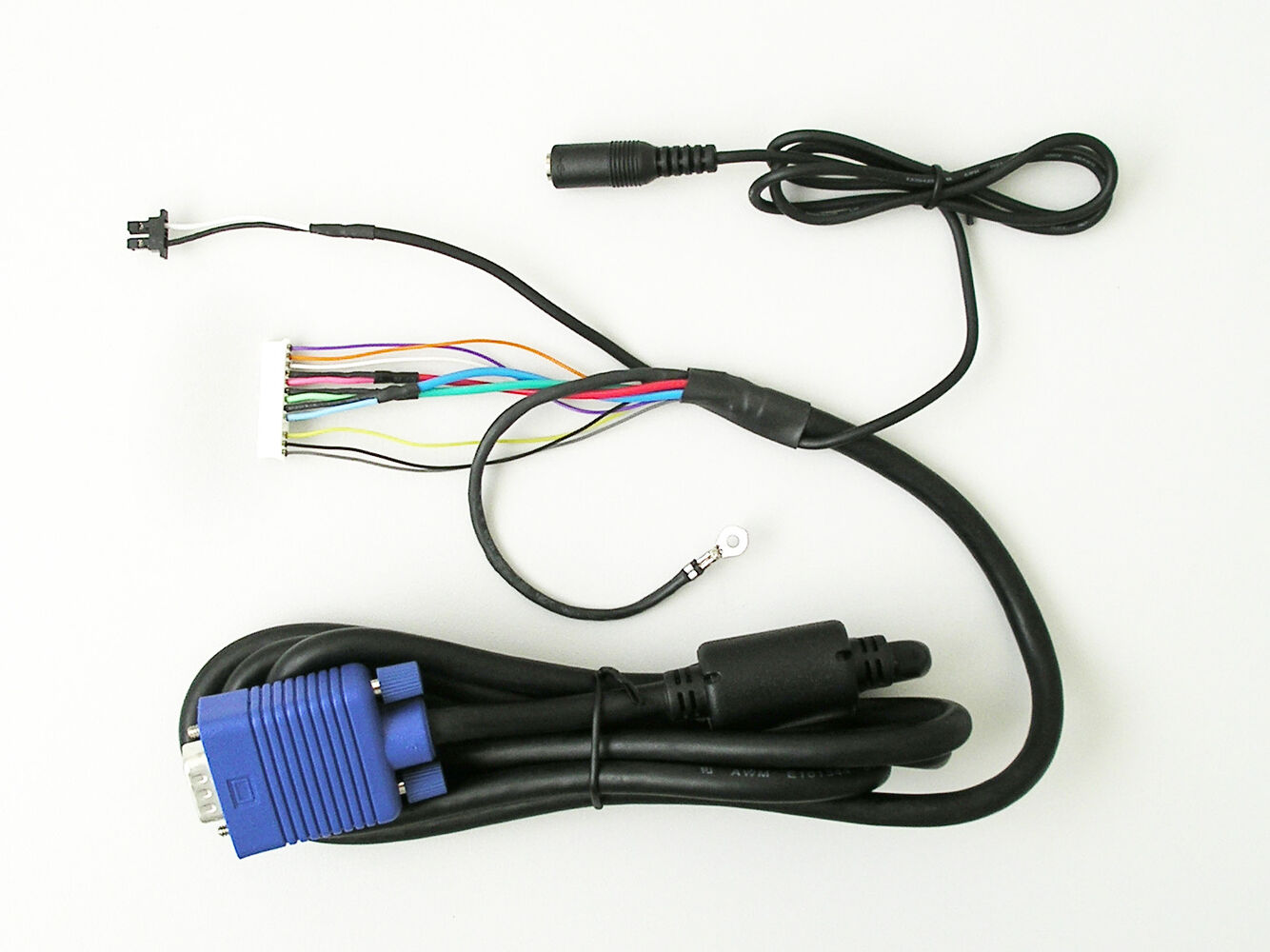

188- 00498: VGA 2.0m |
188- 00508: DVI 2.0m |
188- 02280: VGA 2.0 m |
188- 00627: DVI 2.0 m |
188- 00330: GT-41132- 6012-T3 |

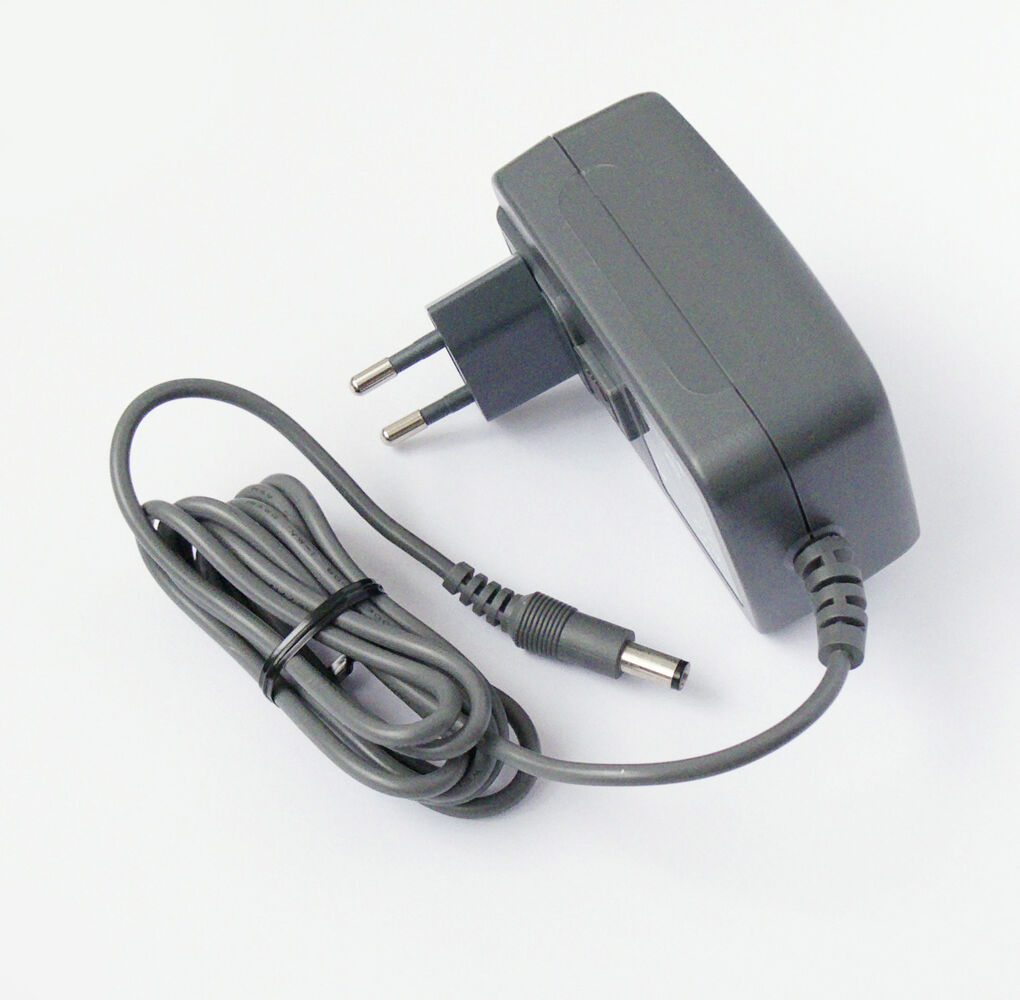

188- 00331: GT-41131- 3015-3.0 |
188- 00554: BCM10X01 |
188- 00531: BCM12S01 |
188- 00527: BCM15X02 |
188- 00528: BCM17E01 |
188- 00555: BCM18W01 |
188- 00529: BCM19EG1 |
188- 00232: VGA Anschluss- kabel 2.2m |
188- 00231: DVI-D Anschluss- kabel 2.2m |

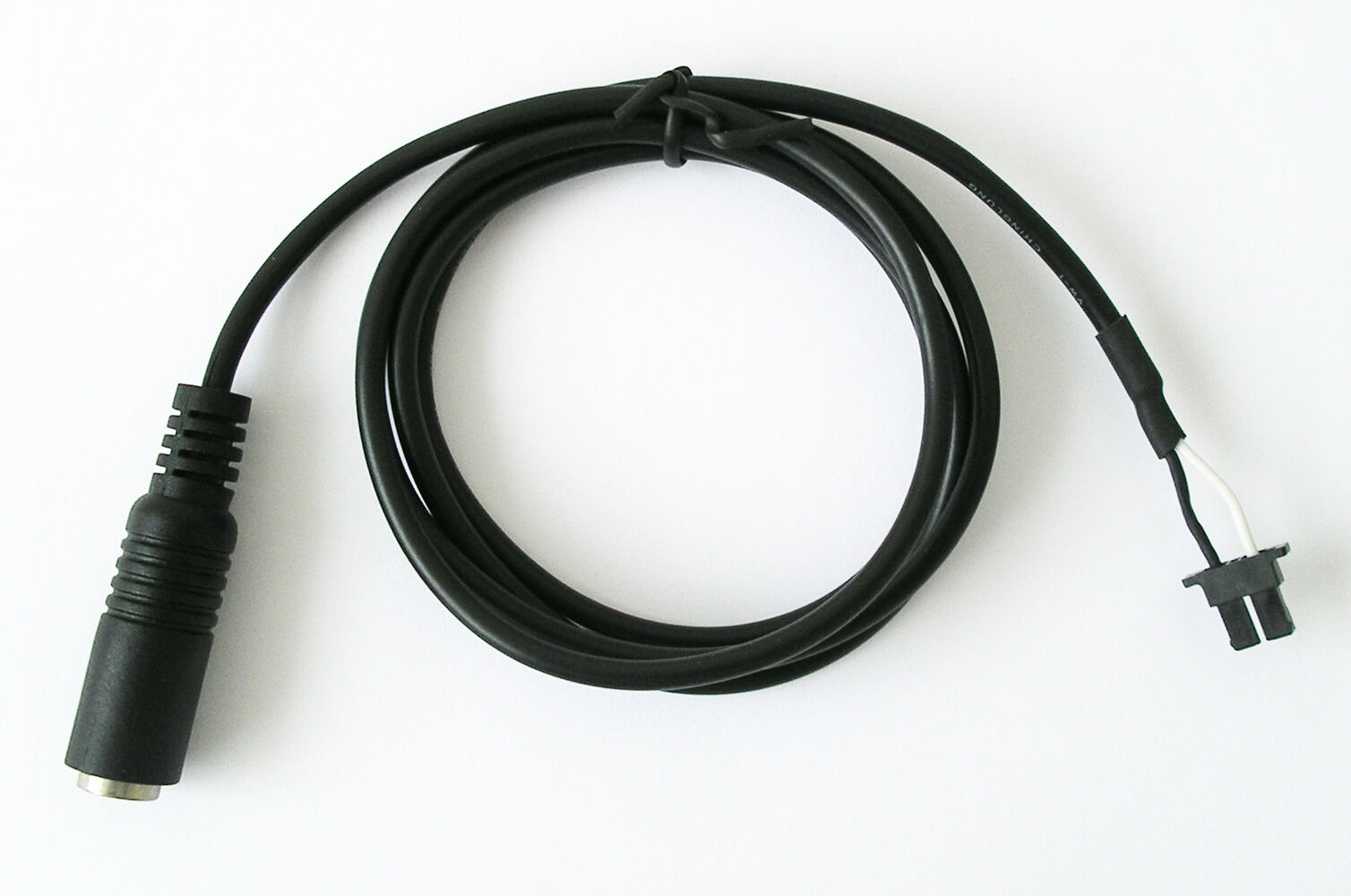

188- 00216: DC-Ltg. Flachst. 0.85m |
188-02281: DC-Ltg. Flachst. 0,85 m | 188- 00218: DC-Ltg. Holst. 1.25m |
188- 00207: Power- leitung 90mm |
188- 02275: Powerleitung 100 mm |
188- 00208: VGA-Leitung 200mm |

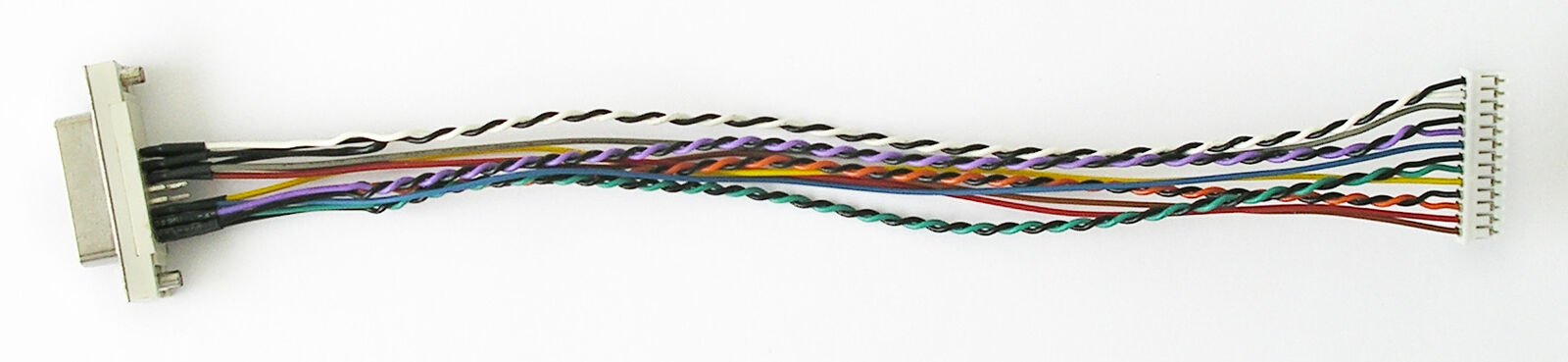

188- 00211: DVI-Leitung 200mm |
|||||
| View picture | View picture | View picture | No picture yet | No picture yet | No picture yet | View picture | View picture | No picture yet | No picture yet | View picture | View picture | Download | Download | Download | Download | Download | Download | View picture | View picture | View picture | No picture yet | View picture | View picture | No picture yet | View picture | View picture | |||||
| 26.4 | 10.4 | BCM10X01-R RGB/DVI | 188-01304 | Siehe SCMT |
|||||||||||||||||||||||||||
| 26.4 | 10.4 | BCM10X02-R RGB/DVI | 188-01306 | Siehe SCMT | |||||||||||||||||||||||||||
| 30.7 | 12.1 | BCM12X02-R RGB/DVI | 188-01301 | Siehe SCMT | |||||||||||||||||||||||||||
| 30.7 | 12.1 | BCM12X03-R RGB/DVI | 188-01305 | Siehe SCMT | |||||||||||||||||||||||||||
| 38.1 | 15.0 | BCM15X08-R RGB/DVI | 188-01122 | Siehe SCMT | |||||||||||||||||||||||||||
| 38.1 | 15.0 | BCM15X09-R RGB/DVI | 188-01123 | ||||||||||||||||||||||||||||
| 43.2 | 17.0 | BCM17EG2-R RGB/DVI | 188-01145 | Siehe SCMT | |||||||||||||||||||||||||||
| 43.2 | 17.0 | BCM17EG3-R RGB/DVI | 188-01146 | Siehe SCMT | |||||||||||||||||||||||||||
| 47.0 | 18.5 | BCM18W01-R RGB/DVI | 188-01178 | Siehe SCMT | |||||||||||||||||||||||||||
| 48.3 | 19.0 | BCM19EG3-R RGB/DVI | 188-01176 | Siehe SCMT | |||||||||||||||||||||||||||
| 48.3 | 19.0 | BCM19EG4-R RGB/DVI | 188-01177 | Siehe SCMT | |||||||||||||||||||||||||||
